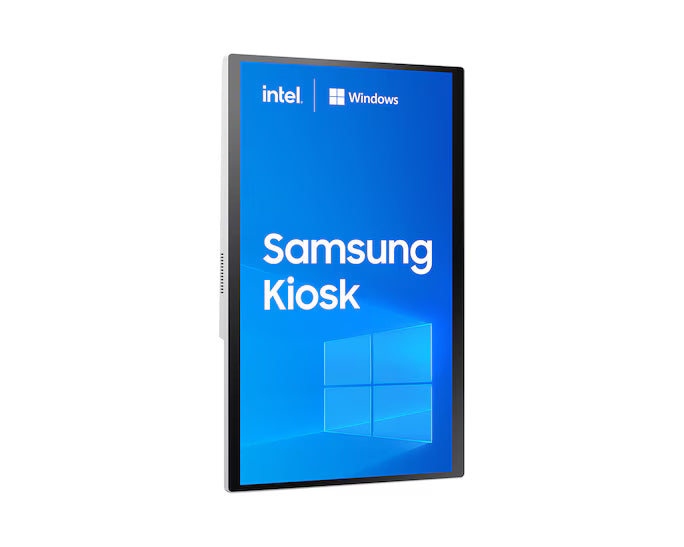

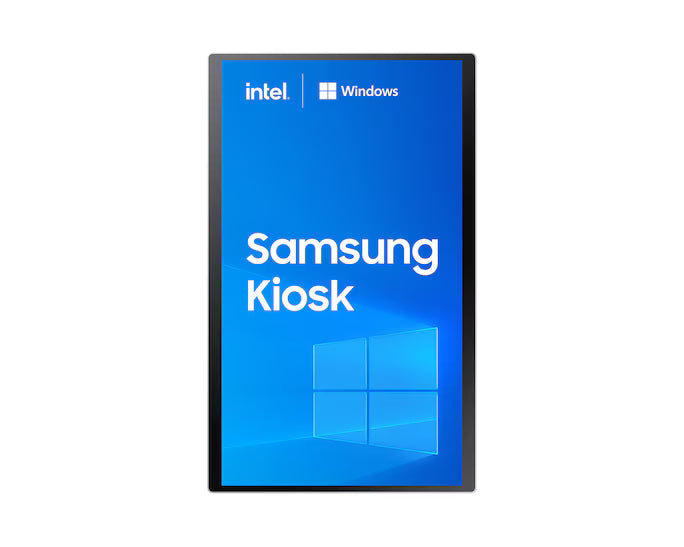

Samsung 24" | Windows Touch Kiosk Display | Full HD | Intel i3 | 250 Nit | 16/7 Commercial Screen | (Connection Box Sold Separately)

The Samsung 24-inch Touch Display with Windows operating system is a compact interactive kiosk display designed for retail, hospitality, and self-service environments. The display features a Full HD resolution with a responsive capacitive touchscreen, allowing customers to interact with digital menus, ordering systems, payment interfaces, and information kiosks.

Powered by an 11th Generation Intel Core i3 processor and running Windows 10 IoT Enterprise, the display provides strong computing performance without requiring an external PC. The modular design allows the display to connect to a separate Samsung kiosk connection box, which enables additional features such as payment systems, printers, and barcode scanning devices.

With its slim modern design, antimicrobial coating, and shatter-resistant screen film, the Samsung kiosk display is built for public environments where reliability and safety are essential. The display supports continuous commercial usage of up to 16 hours per day and can be installed on a countertop, wall mount, or optional floor stand.

Technical Specifications

Display
Screen Size: 24 inches
Panel Type: ADS LCD panel
Aspect Ratio: 16:9
Resolution: 1920 × 1080 (Full HD)
Brightness: 250 nits
Contrast Ratio: 1000:1
Viewing Angle: 178° horizontal / 178° vertical
Response Time: 14 ms
Refresh Rate: 60 Hz
Colour Gamut: 72% NTSC
Pixel Pitch: 0.2745 × 0.2745 mm
Screen Finish: Anti-glare with antimicrobial coating
Glass Protection: Shatter-resistant protective film
Operating Time Support: 16 hours per day / 7 days per week

Touch Features
Touch Technology: Capacitive touchscreen
Multi-Touch Support: Up to 10 touch points
Designed for interactive kiosk applications such as ordering systems and information displays

Hardware
Processor: Intel Core i3 (11th Generation)
Operating System: Windows 10 IoT Enterprise
Internal Storage: 256 GB
Security: Samsung Knox multi-layer security support

Connectivity
USB Ports: 1 × USB port
Ethernet Port: 1 × RJ45 LAN
HDCP Support: Yes
Wireless Connectivity: Wi-Fi supported
Connection Interface: Proprietary port for Samsung kiosk connection box

Audio
Built-in Speakers: Yes
Speaker Configuration: Single channel speaker system

Power
Power Consumption (Typical): 88 W
Standby Power Consumption: 0.5 W
Power Supply: 100 – 240 V AC, 50/60 Hz

Physical Specifications
Dimensions (W × H × D): 547.9 × 334.4 × 48.8 mm
Weight: 4.3 kg
VESA Mount Compatibility: 200 × 200 mm
Bezel Width: 17.9 mm (top/bottom), 9.4 mm (left/right)
Frame Material: Non-glossy finish

Operating Conditions
Operating Temperature: 0°C – 40°C
Operating Humidity: 10% – 80% non-condensing

3 year warranty
